This article represents the held image-only GLO survey plat for T38N R11W. The project provenance identifies the original plat series as approved circa 1849. The scan shows a federal survey township/range title, section geometry, water boundaries, survey annotations, and a survey table. It is a cartographic survey record, not a list of occupants or a parcel-ownership history.

Direct image observations

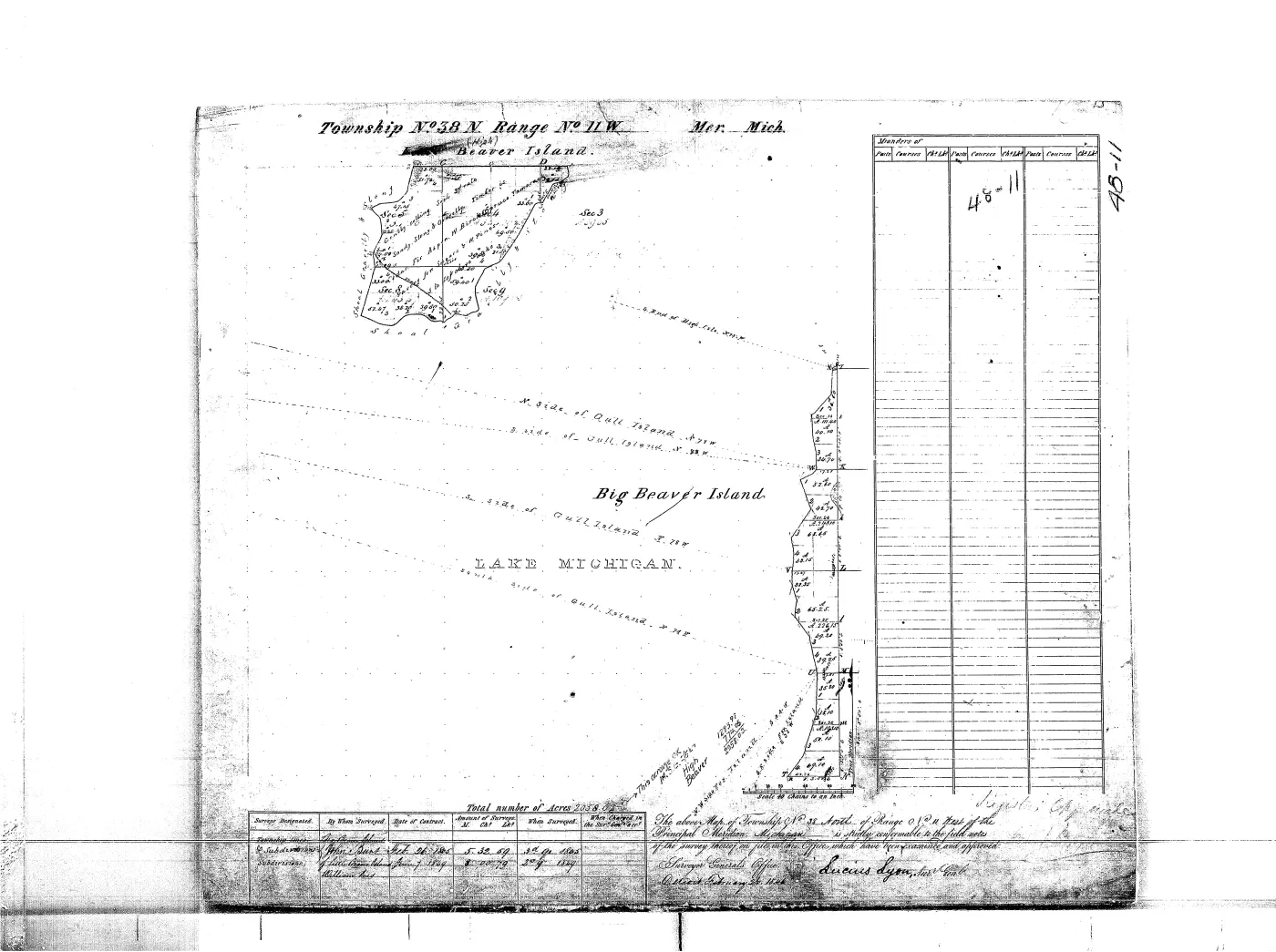

The primary sheet title identifies Township No. 38 N., Range No. 11 W., Michigan Meridian; the map includes Big Beaver Island and surrounding Lake Michigan water.

These observations are a first-pass reading of the scan, not an exhaustive transcription of every small label, bearing, acreage entry, or handwritten note. The PDF is cited directly so later work can verify each reading at native resolution.

Joinable survey and environmental records

The held PLSS section layer places this sheet in T38N R11W (MI190380N0110W0) and connects it to 10 section records. The circa-1800 land-cover reconstruction intersects that modern township geometry in 9 units. These are reproducible comparison joins: they make the scan searchable alongside section and environmental records, but they do not mean that every linked polygon or label appears on the image.

PLSS sections

Circa-1800 land-cover units

GNIS and map comparisons

The modern GNIS layer contributes 1 feature points and 1 name-record links within the same geometry. GNIS is a modern gazetteer comparison, not evidence that a current name was used on the circa- 1849 sheet. The 1855 Lake Survey chart is retained as an independent historical map comparison.

GNIS name records

GNIS name record: McFadden Point

Neighboring held plats

The held collection includes 4 cardinally adjacent plat sheets for navigation across township and range boundaries.

What it can and cannot establish

The plat can establish how the federal survey represented the township and which labels or water features were put on that sheet. It can support comparison with the 1853 Farmer map, the 1855 Lake Survey chart, GNIS, and the machine-readable PLSS section records. It does not establish who lived on or owned a parcel; that requires patents, tract books, deeds, tax records, and other residence evidence.

Open questions

What exact survey and approval dates can be transcribed from the primary title block at native resolution?
Which small feature labels can be matched confidently to current GNIS or PLSS records?
Do the missing field notes or patents preserve people, trails, camps, or ownership information absent from this image?

Sources

Michigan Department of Natural Resources State Spatial Data Library, GLO survey plat 38n11w.
The held scan has SHA-256 170e65796adb3aa6776cb9a04b7761356537c113000f5d49d601484725f363f1. GLO survey plat, T38N R11W, Beaver archipelago (originals approved c. 1849, Lucius Lyon surveyor general; 'BIG BEAVER I.' / 'GARDEN ISLAND' labels). Image-only PDF; direct observations are listed in the article body.
federal · glo_plats · 38n11w
Project provenance sidecar for the held GLO plat.
Records retrieval time, checksum, public-domain status, and the project source note.
federal · glo_plats · 38n11w.provenance
Bureau of Land Management, National Public Land Survey System CadNSDI, retrieved 2026-07-28.
The plat is connected to 10 section records by matching township/range identifier MI190380N0110W0; this is a modern geometry join, not a transcription of every label on the scan.
federal · plss · plss_section
Michigan Department of Natural Resources / Michigan Natural Features Inventory, Land Cover Circa 1800, retrieved 2026-07-28.
9 reconstructed land-cover units intersect the modern PLSS geometry for T38N R11W; this is a comparative spatial index, not a claim that each unit is legible on the plat.
state · michigan · land_cover_circa_1800
U.S. Geological Survey, Geographic Names Information System, Domestic Names and All Names, retrieved 2026-07-28.
1 GNIS feature points fall within the modern PLSS geometry used as the plat extent; linked name-record articles preserve the current gazetteer layer separately from the historical image.
federal · gnis · gnis_names
